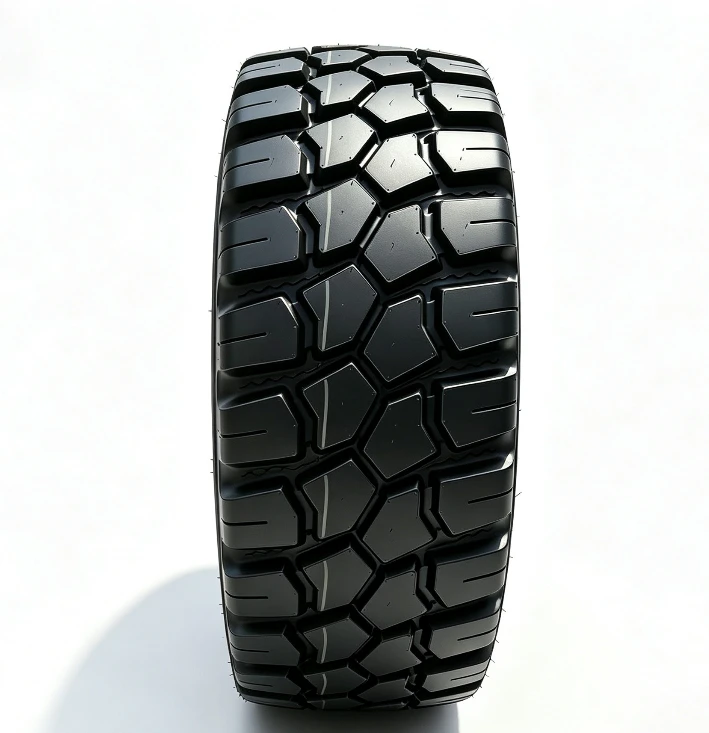

OTR Tyre 1350/550R533 M333

OTR Tyre 1350/550R533 M333

OTR Tyre 13 1350/550R533 is a heavy-duty radial off-road tire engineered for special heavy vehicles, military trucks, armored vehicles and engineering traction vehicles. Built for extremely harsh off-road conditions, this tire delivers outstanding load capacity, impact resistance and...
Share to
Send Inquiry
Description
Technical Parameters

Maxione Group Co., Ltd. is one of the leading manufacturers and suppliers of otr tyre 1350/550r533 m333 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy bulk premium otr tyre 1350/550r533 m333 made in China here from our factory.



OTR Tyre 13

1350/550R533 is a heavy-duty radial off-road tire engineered for special heavy vehicles, military trucks, armored vehicles and engineering traction vehicles. Built for extremely harsh off-road conditions, this tire delivers outstanding load capacity, impact resistance and cross-country traction.

Key Specifications

Size: 1350/550R533

Structure: Radial ply tire

Nominal section width: 1350 mm

Nominal aspect ratio: 550

Rim diameter: 533 mm

Application: Special heavy vehicles, off-road trucks, armored & traction vehicles

Pattern: Aggressive block tread pattern for off-road use

Main Features

Super High Load CapacityRobust reinforced carcass structure adopts high-strength rubber and cord materials to withstand heavy loads under low tire pressure, maintaining stable performance in heavy-duty operation.

Excellent Off-Road Traction & Self-cleaningDeep, large block tread design provides strong grip on mud, sand, gravel and uneven terrain. The open groove design effectively discharges mud, stones and debris to prevent tread clogging.

Strong Cut & Puncture ResistanceSpecially formulated heavy-duty rubber compound improves resistance against cuts, chips and punctures from rocks and sharp obstacles, extending service life in rough terrain.

High Impact Resistance & StabilityOptimized bead and sidewall reinforcement structure absorbs heavy impact. It keeps stable handling at low inflation pressure, suitable for bumpy cross-country roads.

Application Scenarios

Ideal for heavy traction vehicles, special military vehicles, armored vehicles and large off-road engineering vehicles. It performs reliably on desert, muddy, stony and unpaved rugged terrain.

Remarks

Custom logo, packaging and technical parameters are available upon request. Relevant quality certificates can be supplied for export.

50/550R533 M333

SIZE PATTERN TYPE TT/TL RIM PR OVERALL DIAMETER SECTION WIDTH LOAD INDEX /SPEED SYMBOL MAX LOAD SPEED STANDARD PRESSURE TREAD DEPTH TREAD WIDTH TYRE WEIGHT QTY/40HQ
1350/550R533 M333 M+S TT 440-533 18PR 1350mm 530mm 164G 5000kgs 90km/h 660kpa 20mm 434mm 155kgs 81
